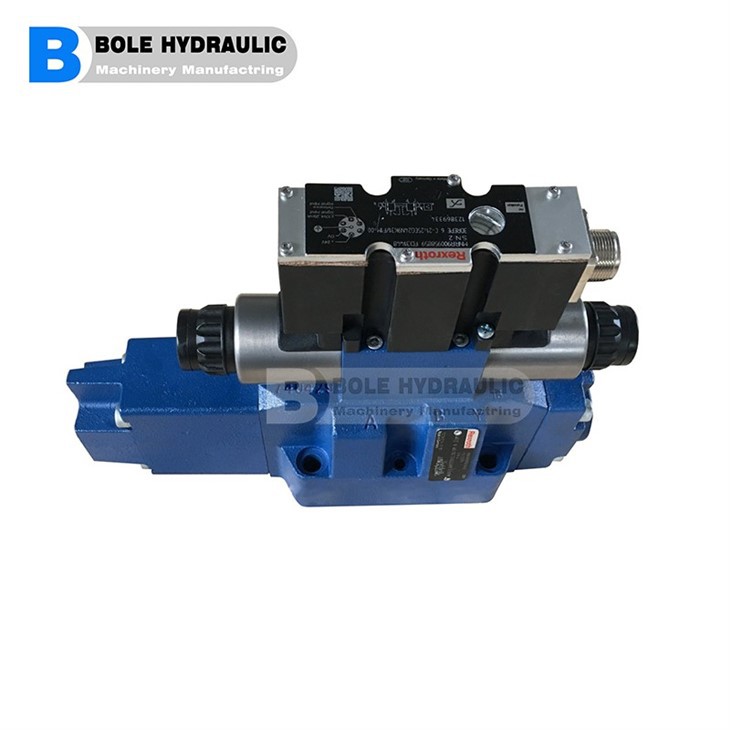

Rexroth 4wrke Series Proporsional Directional Valve
Ukuran 10, 16, 25, 27, 32, 35
Seri komponen 3x
Tekanan operasi maksimum 350 bar
Aliran Maksimum 3000 L/Min
Fitur
*Pilot-dioperasikan 2- katup arah proporsional tahap dengan umpan balik posisi listrik dari spool kontrol utama dan kontrol elektronik terintegrasi (OBE) dari arah dan ukuran aliran
*Operasi solenoida proporsional
Untuk pemasangan subplate: Pola porting menurut ISO 4401 Umpan Balik Posisi Listrik
*Katup Kontrol Pilot Kontrol Utama yang Berpusat pada Musim Semi: Katup Directional Proporsional Tahap Single
*Tahap utama dengan kontrol posisi
Ketik kode:
|
01 |
02 |
03 |
04 |
05 |
06 |
|
07 |
|
08 |
09 |
10 |
11 |
|
12 |
13 |
14 |
15 |
|
4 |
Wrke |
|
|
|
|
‒ |
3X |
/ |
6E |
G24 |
|
K31 |
/ |
|
D3 |
|
* |
|
01 |
4 port utama |
4 |
|
02 |
Katup arah proporsional dengan umpan balik posisi listrik dan elektronik terintegrasi (OBE) |
Wrke |
|
03 |
Ukuran 10 |
10 |
|
|
Ukuran 16 |
16 |
|
|
Ukuran 25 |
25 |
|
|
Ukuran 27 |
27 |
|
|
Ukuran 32 |
32 |
|
|
Ukuran 35 |
35 |
|
04 |
Simbol; Untuk versi yang mungkin, lihat "Simbol/Diagram Sirkuit" |
E; E 1-; E 3-; W 6-; W 8-; R; R3; Ea; W6a; EB; W6B |
|
Nilai NG10 yang dinilai |
||
|
05 |
25 l/mnt |
251) |
|
50 l/mnt |
502) |
|
|
100 L/mnt |
100 |
|
|
Nilai aliran NG16 |
||
|
05 |
125 l/mnt |
1252) |
|
150 l/mnt |
1502) |
|
|
200 l/mnt |
200 |
|
|
220 L/mnt |
220 |
|
|
Nilai aliran NG25 |
||
|
05 |
220 L/mnt |
220 |
|
350 L/mnt |
350 |
|
|
Nilai aliran NG27 |
||
|
05 |
500 L/mnt |
500 |
|
Ukuran 32 |
||
|
05 |
400 L/mnt |
400 |
|
600 L/mnt |
600 |
|
|
Ukuran 35 |
||
|
05 |
1000 L/mnt |
1000 |
|
Bentuk kurva karakteristik |
||
|
06 |
Linear |
L |
|
Linear dengan rentang kontrol halus |
P |
|
|
07 |
Seri Komponen 30 ... 39 (30 ... 39: Instalasi dan dimensi koneksi yang tidak berubah) |
3X |
|
08 |
Katup Kontrol Pilot NG6 |
6E |
|
09 |
Tegangan suplai 24 V |
G24 |
|
Pasokan dan pengembalian minyak pilot |
||
|
10 |
Pasokan minyak pilot eksternal, pengembalian minyak pilot eksternal |
tidak ada kode |
|
Pasokan minyak pilot internal, pengembalian minyak pilot eksternal |
E |
|
|
Pasokan minyak pilot internal, oil oil return internal |
Et |
|
|
Pasokan minyak pilot eksternal, pengembalian minyak pilot internal |
T |
|
|
Sambungan Listrik |
||
|
11 |
Tanpa konektor perkawinan, konektor menurut din en 175201-804 |
K31 |
|
Antarmuka listrik |
||
|
12 |
Nilai Perintah/Nilai Aktual ± 10 Ma |
C1 |
|
Nilai Perintah/Nilai Aktual ± 10 V |
A13) |
|
|
Nilai Perintah/Nilai Aktual ± 10 V |
A5 |
|
|
Nilai Perintah/Nilai Aktual 4 ... 20 Ma |
F1 |
|
|
13 |
Dengan katup pereduksi tekanan zdr 6 dp 0-4 x/40ym-w80 (set dengan fiksasi) |
D3 |
|
14 |
Segel NBR |
M |
|
Segel FKM |
V |
|
|
15 |
Rincian lebih lanjut dalam teks biasa |
* |
|
1) |
Hanya e dan w 6- dengan bentuk kurva karakteristikL(linier) Tersedia |
|
|
2) |
Hanya e 1- dan w 8- dengan bentuk kurva karakteristikL(linier) Tersedia |
|
|
3) |
Saat mengganti seri komponen 2x dengan 3x, antarmuka elektronikA5harus didefinisikan (aktifkan sinyal di pin c |
|
Rexroth 4wrke27 Seri Proporsional Directional Valve Dijual, waktu tunggu pendek, harga terbaik !!!
| R901025115 | 4wrke27e500l -3 x/6eg24ek31/a5d3m |
| R901172257 | 4wrke27e500l -3 x/6eg24tk31/a5d3wc15m |
| R901116067 | 4wrke27q 1-500 l -3 X/6EG24K31/A1D3M |
| R901192918 | 4wrke27w 4-500 p -3 X/6EG24K31/A5D3M -182 |
| R901109412 | 4wrke27w500p -3 X/6EG24EK31/A1D3M -877 |
| R901124218 | 4wrke27w500p -3 X/6EG24K31/A1D3M -877 |
| R901050041 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3V |
| R901057533 | 4wrke27w 8-500 l -3 X/6EG24EK31/A1D3M -280 |
| R901052728 | 4wrke27w 8-500 l -3 X/6EG24EK31/A5D3V |
| R901148875 | 4wrke27w 8-500 l -3 X/6EG24EK31/C1D3M |
| R900747560 | 4wrke27w 8-500 p -3 X/6EG24K31/A5D3M -577 |
| R900249274 | 4wrke27e 1-500 l -3 X/6EG24EK31/A1D3M |
| R901268865 | 4wrke27e 1-500 l -3 X/6EG24EK31/A1D3V |
| R900717642 | 4wrke27e 1-500 l -3 X/6EG24EK31/A5D3M |
| R900724347 | 4wrke27e 1-500 l -3 X/6EG24EK31/A5D3M -280 |
| R901296528 | 4wrke27e 1-500 l -3 X/6EG24EK31/F1D3M |
| R901051417 | 4wrke27e 1-500 l -3 X/6EG24ETK31/A1D3M |
| R900249923 | 4wrke27e 1-500 l -3 X/6EG24K31/A1D3M |
| R901079320 | 4wrke27e 1-500 l -3 X/6EG24K31/A1D3V |
| R901040707 | 4wrke27e 1-500 l -3 X/6EG24K31/A5D3M |
| R901293038 | 4wrke27e 1-500 l -3 X/6EG24K31/A5D3M -280 |
| R901229824 | 4wrke27e 1-500 l -3 X/6EG24K31/C1D3M |
| R901348665 | 4wrke27e 1-500 l -3 X/6EG24K31/f1d3m |
| R901548085 | 4wrke27e 1-500 l -3 x/6EG24K31/f1d3v |
| R901555462 | 4wrke27e 1-500 p -3 x/6EG24etK31/f1d3m |
| R901224825 | 4wrke27e 1-500 p -3 X/6EG24K31/f1d3m |
| R901039097 | 4wrke27e500l -3 x/6eg24ek31/a1d3m |
| R901266055 | 4wrke27e500l -3 x/6eg24ek31/a1d3v |
| R901267566 | 4wrke27e500l -3 x/6eg24ek31/f1d3m |
| R901435011 | 4wrke27e500l -3 x/6eg24etk31/f1d3m |
| R901092786 | 4wrke27e500l -3 x/6eg24k31/a1d3m |
| R901220391 | 4wrke27e500l -3 x/6eg24k31/a1d3m=xv |
| R901077093 | 4wrke27e500l -3 x/6eg24k31/a1d3v |
| R901549112 | 4wrke27e500l -3 x/6eg24k31/a1m -909 |
| R901135347 | 4wrke27e500l -3 x/6EG24K31/a5d3m |
| R901057986 | 4wrke27e500l -3 x/6eg24k31/a5d3m -280 |
| R901130165 | 4wrke27e500l -3 x/6EG24K31/C1D3M |
| R901133144 | 4wrke27e500l -3 x/6eg24k31/f1d3m |
| R901414322 | 4wrke27e500l -3 x/6eg24k31/f1d3v |
| R901210319 | 4wrke27e500p -3 x/6EG24etK31/a1d3m |
| R901241021 | 4wrke27e500p -3 X/6EG24K31/A1D3M |
| R901264931 | 4wrke27r 3-500 l -3 X/6EG24EK31/A1D3M |
| R901266856 | 4wrke27r 3-500 l -3 X/6EG24K31/A1D3M |
| R901099052 | 4wrke27r 3-500 l -3 X/6EG24TK31/A1D3M |
| R901441366 | 4wrke27r 5-500 l -3 X/6EG24EK31/A1D3M -903 |
| R901463313 | 4wrke27w 000 l -3 X/6EG24K31/A1D3M-A25 |
| R901545842 | 4wrke27w 4-500 l -3 X/6EG24K31/A1D3M-A54 |
| R901533811 | 4wrke27w 4-500 l -3 X/6EG24K31/A1D3M-A58 |
| R900708992 | 4wrke27w 4-500 l -3 X/6EG24K31/A5D3M |
| R901550948 | 4wrke27w500l -3 x/6eg24k31/a1d3m-a76 |
| R901303285 | 4wrke27w500p -3 x/6EG24etK31/a5d3m -709= & |
| R901324993 | 4wrke27w500p -3 X/6EG24K31/A5D3M -709 |
| R900710940 | 4wrke27w500p -3 x/6EG24K31/a5d3m -709= de |
| R901041512 | 4wrke27w 6-500 l -3 X/6EG24EK31/A1D3M |
| R901220494 | 4wrke27w 6-500 l -3 X/6EG24EK31/A1D3M=xv |
| R901551918 | 4wrke27w 6-500 l -3 X/6EG24EK31/A1M -909 |
| R900735040 | 4wrke27w 6-500 l -3 X/6EG24EK31/A5D3M |
| R901176012 | 4wrke27w 6-500 l -3 X/6EG24EK31/A5D3V -280 |
| R901169415 | 4wrke27w 6-500 l -3 X/6EG24EK31/F1D3M |
| R901169989 | 4wrke27w 6-500 l -3 x/6EG24etK31/a1d3m |
| R901216638 | 4wrke27w 6-500 l -3 X/6EG24ETK31/A1D3V |
| R900755687 | 4wrke27w 6-500 l -3 X/6EG24EtK31/a5d3m |
| R901213877 | 4wrke27w 6-500 l -3 X/6EG24ETK31/A5D3M535 & |
| R901204539 | 4wrke27w 6-500 l -3 X/6EG24EtK31/f1d3m |
| R900731496 | 4wrke27w 6-500 l -3 X/6EG24K31/A1D3M |
| R901559292 | 4wrke27w 6-500 l -3 X/6EG24K31/A1D3M -259 |
| R978916045 | 4wrke27w 6-500 l -3 X/6EG24K31/A1D3M43A1295 |
| R901430698 | 4wrke27w 6-500 l -3 X/6EG24K31/A1D3M -772 |
| R900616821 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M |
| R901400201 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M -280 |
| R978916104 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M43A1295 |
| R901272383 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M -535 |
| R900702111 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M -535= & |
| R901106202 | 4wrke27w 6-500 l -3 X/6EG24K31/A5D3M -871= & |
| R901313951 | 4wrke27w 6-500 l -3 X/6EG24K31/C1D3M |
| R901147944 | 4wrke27w 6-500 l -3 X/6EG24K31/F1D3M |
| R901209787 | 4wrke27w 6-500 l -3 X/6EG24TK31/A5D3M |
| R901329115 | 4wrke27w 6-500 p -3 X/6EG24K31/A1D3M |
| R900701429 | 4wrke27w 8-500 l -3 X/6EG24EK31/A1D3M |
| R900725366 | 4wrke27w 8-500 l -3 X/6EG24EK31/A5D3M |
| R900778594 | 4wrke27w 8-500 l -3 X/6EG24EK31/A5D3M -280 |
| R901097952 | 4wrke27w 8-500 l -3 X/6EG24EK31/F1D3M |
| R901199286 | 4wrke27w 8-500 l -3 x/6EG24etK31/a1d3m |
| R901126339 | 4wrke27w 8-500 l -3 X/6EG24EtK31/a5d3m |
| R901115085 | 4wrke27w 8-500 l -3 X/6EG24EtK31/f1d3m |
| R901250339 | 4wrke27w 8-500 l -3 X/6EG24EtK31/f1d3v |
| R900750794 | 4wrke27w 8-500 l -3 X/6EG24K31/A1D3M |
| R900706180 | 4wrke27w 8-500 l -3 X/6EG24K31/A5D3M |
| R901088135 | 4wrke27w 8-500 l -3 X/6EG24K31/A5D3M -535 |
| R901023812 | 4wrke27w 8-500 l -3 X/6EG24K31/A5D3V |
| R901404792 | 4wrke27w 8-500 l -3 X/6EG24K31/C1D3M |
| R901072883 | 4wrke27w 8-500 l -3 X/6EG24K31/F1D3M |
| R901274300 | 4wrke27w 8-500 l -3 x/6EG24K31/f1d3v |
| R901051312 | 4wrke27w 8-500 l -3 X/6EG24TK31/A1D3M |
| R901083317 | 4wrke27w 8-500 p -3 X/6EG24K31/A5D3M |
| R901057319 | 4wrke27w 9-500 l -3 X/6EG24K31/A5D3M |
