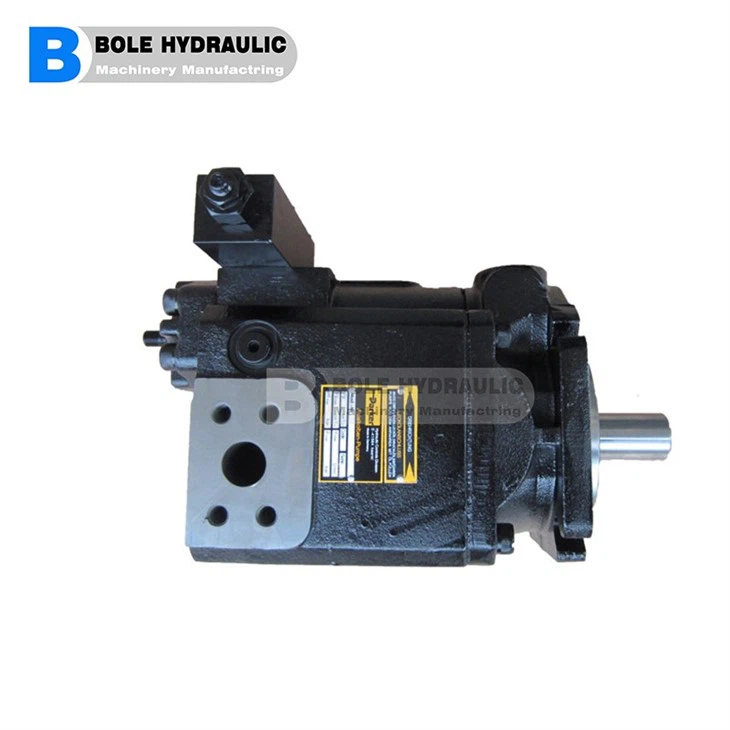

Parker Hannifin 20/925579 JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV
Machine FitmentPUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M 0953997 3 cxsm p/s Sideshift 9802/9800pump, hidrolik utama 36/26ccr 92hp Membangun m 0953997 3 cx p/s Sideshift 9802/9800pump, hidrolik utama 36/26ccr 92hp m {{hydraulic 36/26ccr 92hp M {{hydraLic 36/26ccr 92hp M {hydraLIC 36/26CCR 92HP 92HP M {HydraLic Main Main CXSM SIDESHIFT 9802/9800PUMP, Hidraulik Utama 36/26CCR 92HP Membangun M 0953997 3 CXSM Manual Sideshift 9802/9800Pump, Hydraulic 36/26CCR 92HP Main.800 Builde M 0953997 3 cx Sideshift 92HP 92HP 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M{{61} } Cx super man sideshift 9802/9800pump 36/26 ccr hidrolik utama - lat -am 90 hp membangun m 1348037 214 e/3c 14 Centremount Economy "E" 9812/0010
Spesifikasi teknis
Rotasi: Searah jarum jam (melihat dari ujung poros)
Batang: 1 "Diameter 15t SAE Poros Splined 16/32 Pitch
Flensa pemasangan: Sae b 2 lubang
Perpindahan pompa depan: 36 cc/rev (36L/mnt per 1000 rpm)
Perpindahan pompa belakang: 26 cc/rev (26L/mnt per 1000 rpm)
Inlet flange: Single 2 "SAE
Outlet pompa depan: 1.1/16 "-12 UNF BREEDD
Outlet pompa belakang: 7/8 "-14 UNF
Tekanan kerja maksimum pada pompa depan: 250 batang
Tekanan kerja maksimum pada pompa belakang: 275 batang
Max. Torsi poros input: 460 nm
Berat: 26 kg
Menggantikan nomor bagian JCB berikut
20/925339 - 20/925579 - 332/F9029
Fitment mesin
Pompa 36/26 CCR Hidraulik Utama 92 & 100 HP Builds 3CX-T 92 dan 100hp 9812/0010
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cx manual sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cxsm p/s sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cx p/s sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cxsm sideshift 9802/9800
Pompa, Hidraulik Utama 36/26CCR 92HP Membangun M 0953997 3 CXSM Manual Sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cx sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cx super sideshift 9802/9800
Pompa, Hidraulik Utama 36/26CCR 92HP Membangun M 0953997 3 CX Super P/S Sideshift 9802/9800
Pompa, hidrolik utama 36/26ccr 92hp membangun m 0953997 3 cx super man sideshift 9802/9800
Pompa 36/26 CCR Hidraulik Utama - Lat -AM 90 HP Membangun M 1348037 214 E/3C 14 Centremount Economy "E" 9812/0010
